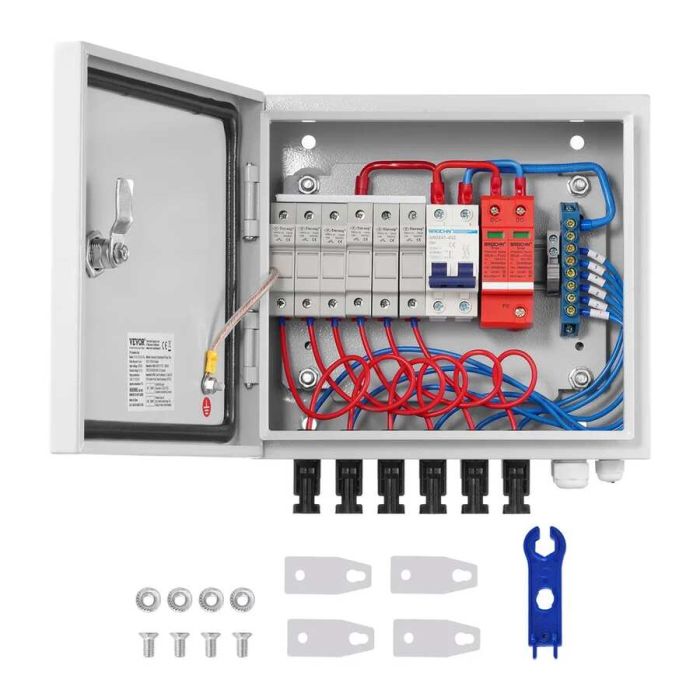

PV junction box with 6 wires, 10A fuse, 63A circuit breaker, IP65, steel housing

The PV junction box is designed for connecting and protecting solar energy systems. It ensures reliable electrical circuit control and protection against overvoltages and overloads. The box is perfect for solar systems with internal protection and resistance to environmental influences.

Description:

• 6-row PV junction box for solar energy systems
• Equipped with 10 A rated current fuse and 63 A circuit breaker
• Surge protection with 40 kA lightning arrester
• Steel housing with IP65 protection class
• Door opening with rotary lock, easy installation

Features:

• Multiple layers of protection against environmental influences
• Two-color wires clearly identify polarity
• Removable mounting plate made of powder-coated cold-rolled steel
• PU polyurethane foam sealing strip
• Widely applicable in solar panel systems

Technical data:

• Rated operating voltage: DC 500 V
• Surge protection: 40 kA, 2P DC 500 V
• Main circuit breaker specification: 63 A 2P DC 500 V
• Fuse holder: DC 15 A / 500 V
• Fuse rated current: DC 10 A
• Number of outputs: 1
• Number of inputs: 6
• Material: 0.8 mm cold rolled steel with RAL7035 gray white coating
• Overall dimensions (L x W x H): 280 x 250 x 100 mm (11.02 x 9.84 x 3.94 in.)
• Net weight (with accessories): 3.76 kg (8.29 lb)
• Product model number: SP-HL-S252810-10A

Package contents:

• PV junction box with fuse and circuit breakers
• Lightning arrester and solar connector
• Removable mounting plate
• Sealing tape
