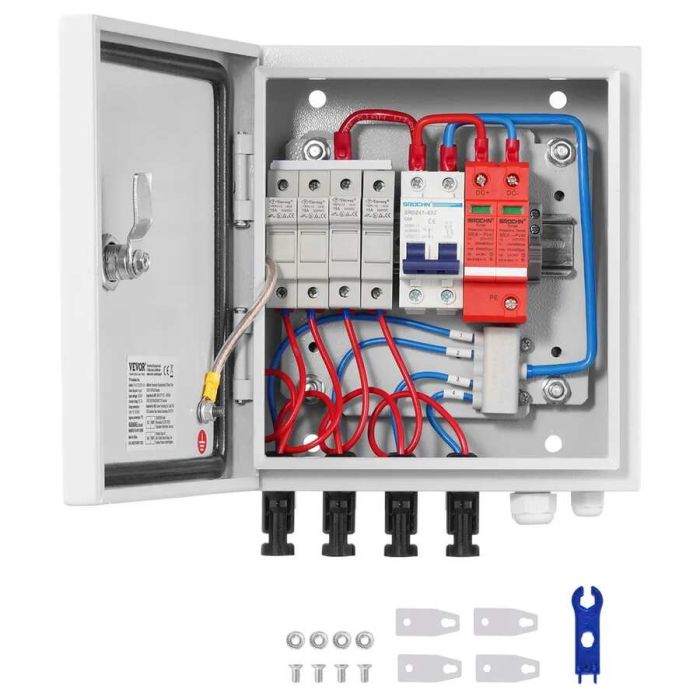

PV junction box 4-string, steel housing, IP65, with 15A fuse and 63A circuit breaker

The PV junction box is designed for solar panel systems, ensuring reliable protection of the connecting components. This box has 4 inputs, a steel housing and meets the IP65 protection class, thus ensuring resistance to environmental influences. The box is equipped with a fuse, circuit breaker and lightning arrester, suitable for use with DC 500 V.

Description:

• 4-row PV junction box for solar panel systems
• 15 A rated current fuse
• 63 A double-pole circuit breaker
• Lightning arrester and solar connector
• Steel housing with RAL7035 gray-white coating
• IP65 protection class, dust and moisture resistance

Features:

• Easy opening and closing of the box with a twist lock
• Multiple layers of protection ensure long-term resistance
• Easy installation with removable mounting plate
• Two-color wires clearly identified
• Widely applicable to various solar panel systems

Technical data:

• Rated operating voltage: DC 500 V
• Surge protection: 40kA 2P DC 500 V
• Main circuit breaker: 63A 2P DC 500 V
• Fuse holder specification: DC 15A / 500 V
• Rated fuse current: DC 15A
• Inputs: 4, Outputs: 1
• Sealing: PU polyurethane foam (black)
• Mounting plate: removable, powder coated cold rolled steel
• Product dimensions (L x W x H): 230 x 250 x 100 mm (9.06 x 9.84 x 3.94 in.)
• Material: 0.8 mm cold rolled steel
• Weight: 3.22 kg (7.1 lb) with all accessories
• Door opening method: rotary lock
• Model number: SP-HL-S252310-15A

Package included:

• PV junction box with steel housing
• Fuse 15 A
• Circuit breaker 63 A
• Lightning discharger
• Removable mounting plate
