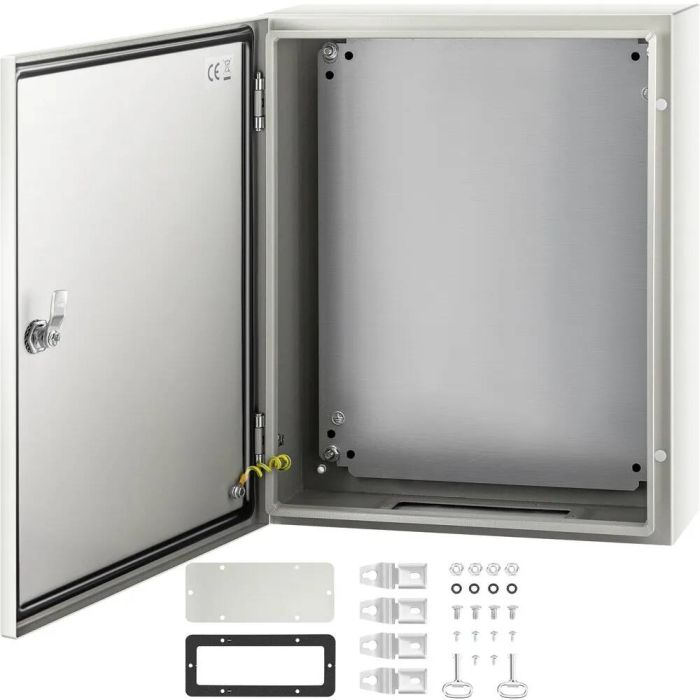

NEMA 4X steel electrical box, 50x40x15 cm, IP66, outdoor/indoor

The NEMA 4X steel electrical box is designed to protect electrical equipment from water, dust, and other external factors. The box is ideal for both outdoor and indoor use, ensuring safety and reliable operation in difficult conditions.

Description:

• Steel housing, dimensions 50x40x15 cm (height x width x depth)
• IP66 protection class - water and dust resistant
• Internal dimensions: 49.7 x 39.7 x 11.65 cm (H x W x D)
• Color: gray white (RAL7035)
• Model: SPT with hinges and lock

Features:

• Made of 0.059'' / 1.5 mm thick carbon steel
• Epoxy polyester powder coating coating provides corrosion resistance
• Lockable hinged construction
• Removable galvanized back plate (0.079'' / 2 mm thick)
• Suitable for use in NEMA 1, 2, 4, 4X and 12 standards

Technical data:

• External dimensions: 50 x 40 x 15 cm (20'' x 16'' x 6'')
• Galvanized back plate dimensions: 45 x 35 cm (17.7'' x 13.8'')
• Product weight: 12.1 kg (26.68 lbs)
• CE and ROHS certified

Shipping set:

• Electrical box with mounting plate
• Mounting plate is galvanized and removable
