3/4 NPT hydraulic quick coupling, 20.7 MPa, 106 l/min (ISO 16028)

The 3/4 NPT hydraulic quick coupling is designed for efficient connection of hydraulic systems and complies with ISO 16028 standards. It ensures reliable operation at nominal flow rates up to 106 l/min and nominal steel pressure up to 20.7 MPa. These quick couplings are ideal for various industrial applications.

Description:

• 3/4 inch body hydraulic coupling with 3/4 inch NPT thread
• Quick coupling according to ISO 16028 standard
• Nominal flow: 106 l/min
• Nominal steel pressure: 20.7 MPa
• Set of 4 pcs. hydraulic quick couplings
• Coupling locking system ensures reliable locking
• With dust covers to protect the couplings from dirt

Features:

• Wide application in various hydraulic systems
• Designed for long service life
• Temperature resistance from -20 ℃ to +100 ℃ (NBR material)
• Temperature resistance from -20 ℃ to +180 ℃ (FKM material)

Technical data:

• Nominal stainless steel pressure: 10.4 MPa
• Temperature range (NBR): -20 ℃ ~ +100 ℃
• Temperature range (FKM): -20 ℃ ~ +180 ℃

Delivery set:

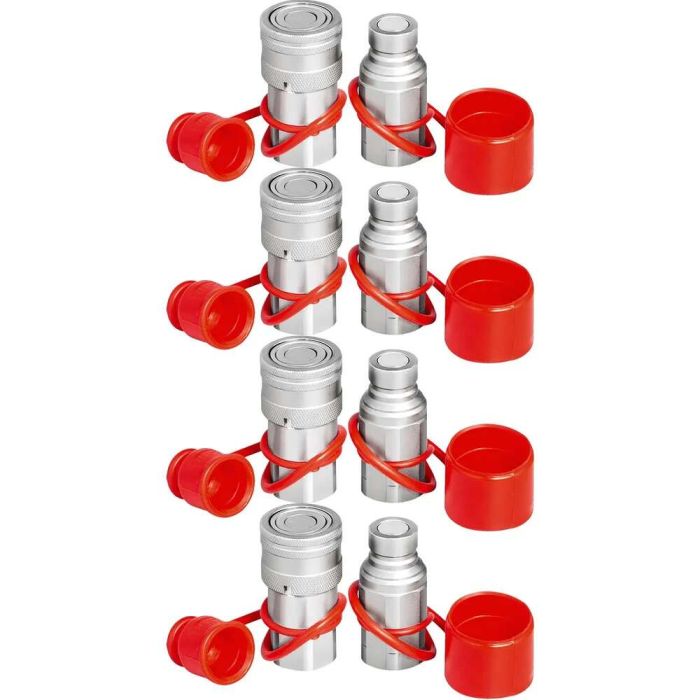

• 4 pcs. 3/4 NPT hydraulic quick connectors
• Dust covers for each connector
