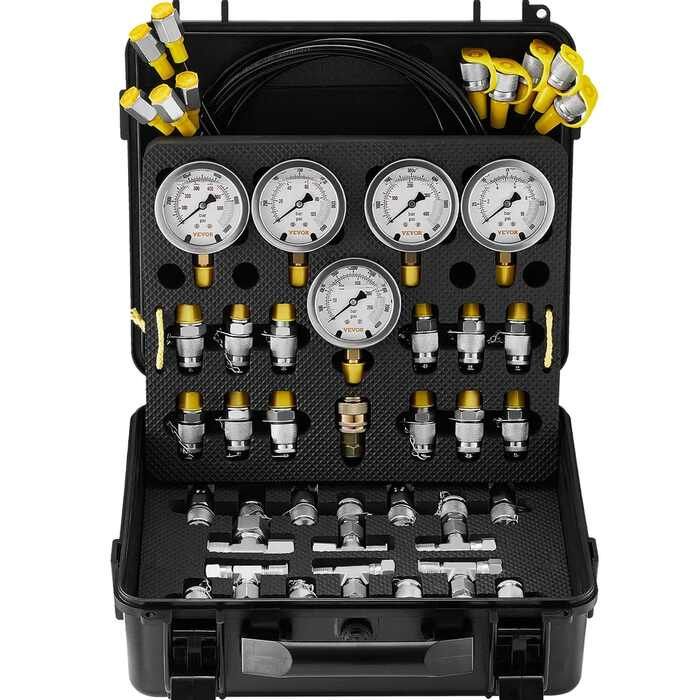

Hydraulic pressure test set, 10-600 bar, 5 gauges, 13 connectors, carrying case

The hydraulic pressure test kit is designed for accurate diagnostics of hydraulic systems in excavators and other machines. The kit includes five pressure gauges with universal connectors for a wide range of applications. The kit comes with a carrying case for easy transport and use on the job.

Description:

• Hydraulic pressure test kit with 5 gauges and various connectors
• Designed for testing hydraulic systems of excavators, tractors and other machines
• The kit includes 13 standard and 14 T-shaped connectors
• Test hose length - 1.6 m (5.2 ft)
• Convenient carrying case allows safe storage and transport

Features:

• 5 transparent pressure test gauges
• Universal test connectors for various applications
• Pressure ranges: 10, 100, 250, 400 and 600 bar
• Ensures measurement accuracy and reliability
• User-friendly design

Technical data:

• Model number: TKS-4
• Test connection specifications: ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10/1.25, M14*1.5, M10*1, M16*1.5, M12*1.5, NPT1/4, Carter quick connector
• Pressure range: 0-150 PSI (10 bar), 0-1500 PSI (100 bar), 0-4000 PSI (250 bar), 0-6000 PSI (400 bar), 0-10000 PSI (600 bar)
• Hose length: 1.6 m (5.2 ft)
• Product dimensions: 325 x 305 x 115 mm (12.8 x 12.0 x 4.5 in)
• Net weight: 6.75 kg (14.9 lb)
• Main material: Aluminum alloy 6061, 304 stainless steel

Package included:

• 5 hydraulic pressure gauges
• 13 connectors
• 14 T-connectors
• 5 test hoses
• Carrying case
