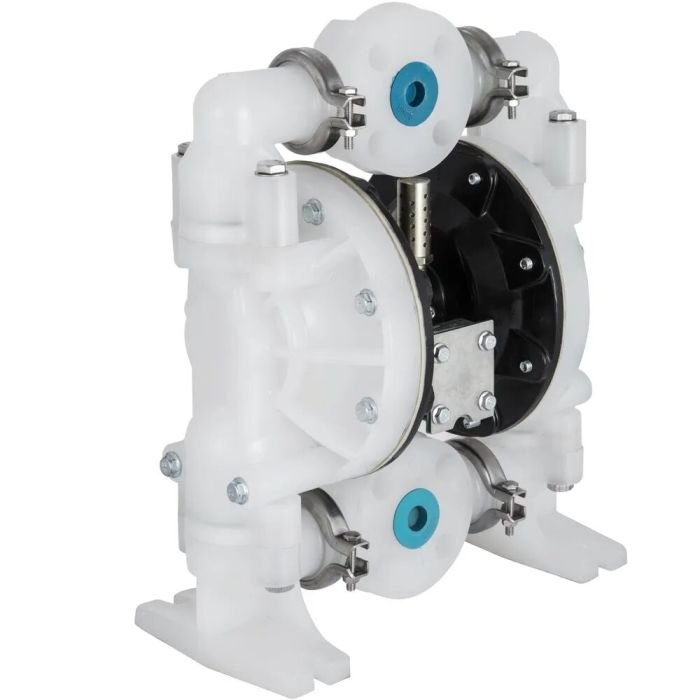

Pneumatic double diaphragm polypropylene pump, 25.4 mm, 113 l/min, for chemical and industrial applications

Airflow double diaphragm pump with 25.4 mm (1 inch) inlet/outlet port is designed for chemical and industrial applications. This pump provides a maximum flow rate of 113 l/min (30 gal/min) and can withstand pressures up to 8 bar (120 PSI). Polypropylene housing and PTFE double diaphragm guarantee reliability in various operating conditions.

Description:

• Air-operated double diaphragm pump
• Inlet and outlet port – 1 inch (25.4 mm)
• Suitable for chemical and industrial applications
• Maximum air flow – 113 l/min (30 gal/min)
• Polypropylene housing with PTFE double diaphragm

Features:

• Rugged and resistant housing
• Sealed ball valve
• Can be used with various materials
• Universal use in industry and the chemical sector
• Professional air-operated models

Specifications:

• Model: QBY4-25PP
• Inlet size: 1 inch (25.4 mm)
• Outlet size: 1 inch (25.4 mm)
• Air inlet size: 1/2 inch (12.7 mm)
• Max. flow rate: 79.2 gal/min (300 l/min)
• Suction head: 0-5 m (0-16.4 ft)
• Self-priming dry: 3 m (10 ft)
• Self-priming wet: 4.6 m (15 ft)
• Max. pressure: 8 bar (120 PSI / 84 m / 275.59 ft)
• Max. suspended solids size: 3 mm (1/8 inch)
• Housing made of polypropylene
• Double diaphragm made of PTFE

Delivery set:

• Air flow double diaphragm pump QBY4-25PP
