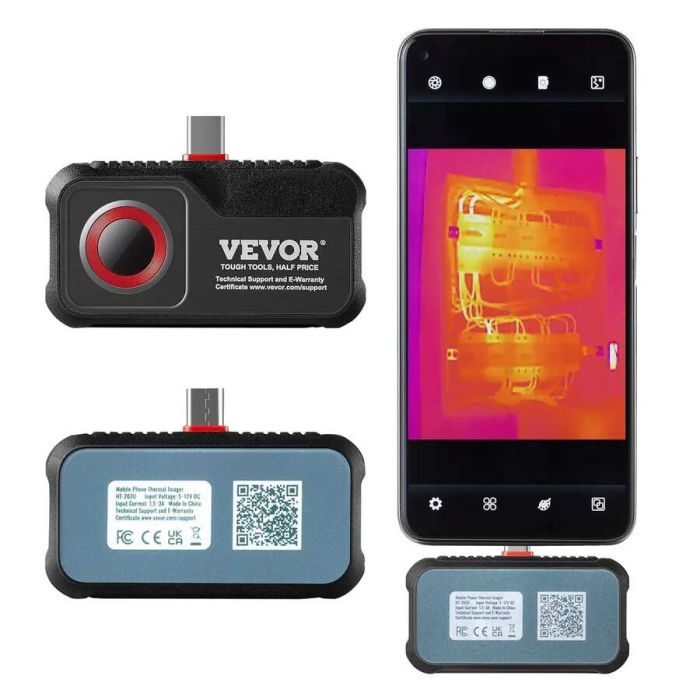

Thermal imaging camera for android, 256x192 IR, 25 Hz, IP54

Thermal imager with 256 x 192 infrared (IR) resolution for Android devices. It allows for accurate temperature capture from -4 to 1022°F and features a 25Hz refresh rate and IP54 dust and splash protection. The device is suitable for use in various working conditions with hot spot tracking and an integrated video camera.

Description:

• 256 x 192 pixel infrared thermal resolution.
• Compatible with Android phones and tablets.
• Temperature range from -4 to 1022 °F (-20 °C to 550 °C).
• Visible light mode with hot spot tracking.
• IP54 dust and splash protection.

Features:

• Smooth 25 Hz refresh rate - real-time thermal imaging.
• Adjustable emissivity from 0.01 to 1.00.
• Visibility 50.0° x 37.2° field of view covers a large observation area.
• Integrated video camera for detailed overview.
• Measurement accuracy:
  • 300℃～550℃: ±4%
  • -15℃～300℃: ±2℃ or ±2%
  • -20℃～-15℃: ±4℃

Technical data:

• Model: HT-203U
• Pixel pitch: 12μm
• Thermal sensitivity: 0.1°C (32.18°F)
• Interface: TYPE-C
• Wavelength range: 8-14 μm
• Operating temperature: -10-50 °C (50-122 °F)
• Storage temperature: -20-60 °C (-4-140 °F)
• Dimensions: 70 x 45 x 15 mm (2.76 x 1.77 x 0.59 in)
• Net weight: 0.083 kg (0.183 lbs)
• Main material: Aluminum alloy

Package contents:

• Thermal imaging camera HT-203U
• USB TYPE-C cable
• User manual
