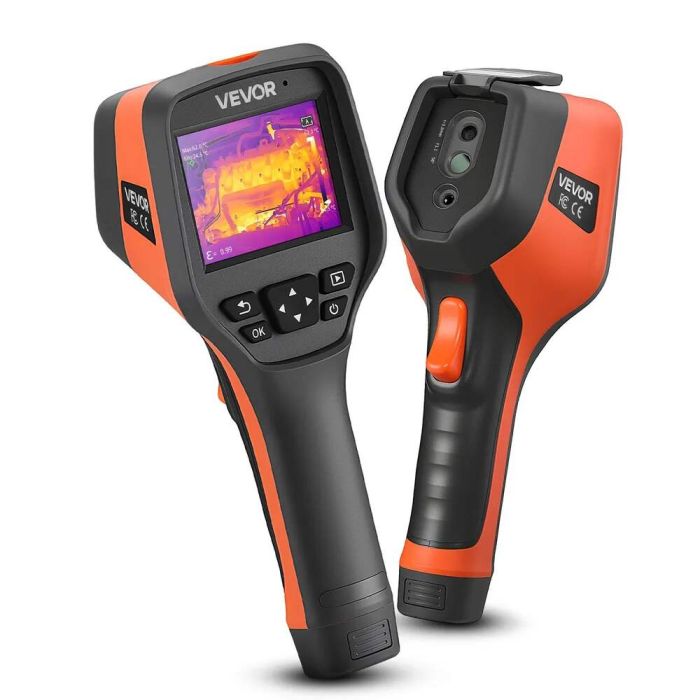

Portable thermal camera, 256x192 IR, 3.5" touchscreen, wifi

The SC256M thermal camera with 256 x 192 infrared resolution and 2 MP video camera provides clear thermal images in real time. The device has a 3.5-inch touch color screen and supports Wi-Fi, making it convenient for use in various fields.

Description:

• Portable thermal imaging camera with 256 x 192 IR resolution
• 2 MP camera with visible light
• 3.5-inch color touch screen
• Real-time temperature monitoring from -4 ℉ to 1022 ℉
• Supports Wi-Fi connection and built-in flashlight

Features:

• Infrared viewfinder with 25 Hz refresh rate
• Thermal sensitivity ≤ 35 mK
• Temperature measurement range from -20 ℃ to 550 ℃
• Tripod support with standard 1/4 inch connector
• Drop resistance up to 2 m
• Waterproof class IP54
• 13 languages ​​available

Technical data:

• Infrared resolution: 256 x 192 pixels
• Visible light resolution: 1600 x 1200 pixels
• Screen size: 3.5 inches
• Frame rate: 25 Hz
• Temperature accuracy: ±2 °C / ±2 %
• Temperature resolution: 0.1 °C
• Operating temperature: -10 ℃ to 50 ℃
• Storage temperature: -20℃ to 60℃
• Battery capacity: 2 x 4500 mAh
• Internal memory: 32 GB
• Net weight: 0.64 kg (1.4 lbs)
• Model number: SC256M
• Irradiance: 0.01-1.0
• Focus mode: No focus

Package contents:

• Thermal camera SC256M
• Separately connectable battery system (2 x 4500 mAh)
• Tripod mount (1/4 inch)
• Charger and USB cable
• User manual
