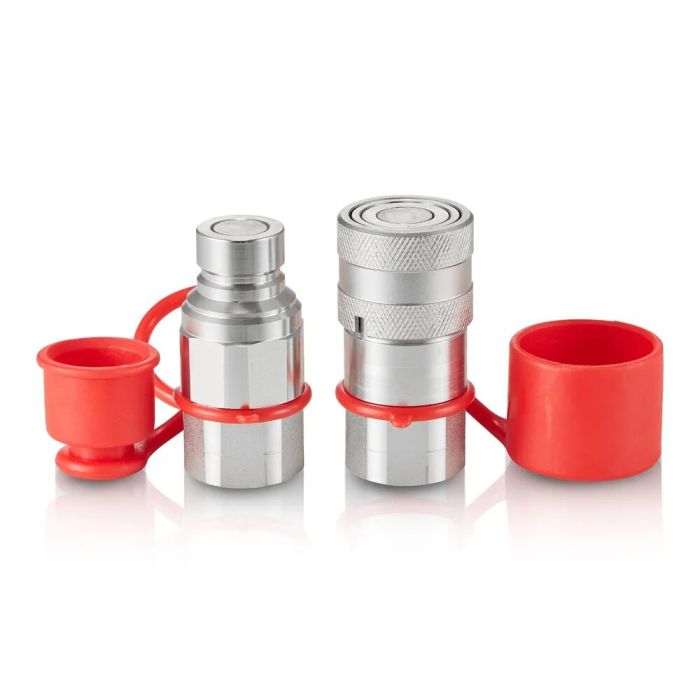

1/2 inch flat face hydraulic connector, NPT quick connect (ISO16028)

1/2 inch flat face hydraulic connectors are designed for quick and safe connection of hydraulic systems. Made of 45# carbon steel with chrome plating, they meet ISO16028 standards and ensure high reliability and leak protection.

Description:

• 1/2 inch NPT mini swivel hydraulic quick connect fittings
• 2 protective caps included to prevent dust ingress
• Connector with female internal thread, marked according to ISO16028 standard
• Designed for quick connection and disconnection of hydraulic machines and systems

Features:

• Safety and leak protection
• Made of 45# carbon steel with chrome plating
• High compatibility with other hydraulic systems
• Quick and easy connection
• Red rubber dust caps

Technical data:

• Female connection size: 1/2 inch NPT (internal thread)
• Female connection dimensions (L x W): Φ38 × 75 mm
• Male connection dimensions (L x W): Φ38 × 72 mm
• Connector body size: 1/2 inch
• Nominal pressure: 5076 psi
• Nominal flow rate: 12 GPM
• Maximum flow rate: 25 GPM
• Product dimensions (L x W x H): Φ38 × 129.3 mm (Φ1.5 x 5.09 in.)
• Dust Cap Dimensions (L x W): Φ40 × 260 mm, Rubber, Red
• Product Weight: 0.69 kg (1.52 lb)
• Material: 45# Carbon Steel with Chrome Plated
• Item Model Number: LSQ-FF

Package Contents:

• 1 Pair 1/2" NPT Hydraulic Flat Face Fittings
• 2 Protective Protective Caps
