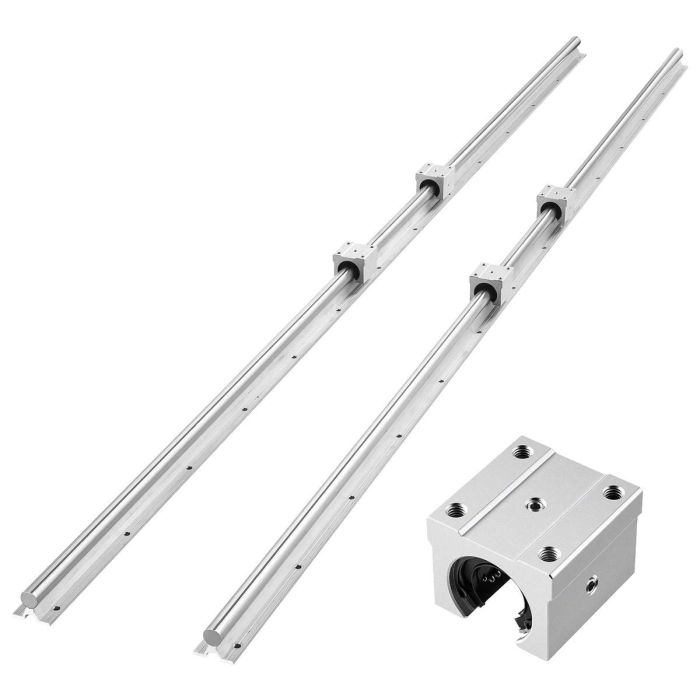

Linear rail set VEVOR SBR20-C 2000L, 2 rails and 4 slide blocks

VEVOR linear guide SBR20 set is designed to control linear motion in cutting, grinding, milling, drilling and other machines. The set includes two 2000 mm long guide rails and four sliding blocks.

The rails have a fully supported shaft, and built-in ball bearings ensure smooth movement of the blocks along the shaft. The shafts are made of high-strength carbon steel, and the blocks and supports are made of aluminum alloy. The surface is coated with an electrolytic layer to protect against rust and corrosion. The kit can be used for DIY assembly or rail replacement.

Main product features

• Linear motion guide rail kit SBR20.
• Two rails and four bearing slide blocks.
• Smooth, low-noise sliding.
• Surface finish: 0.1-0.22 μm.
• Straightness: 5 mΩ / 100 mm.
• Static load: 1370 CN / 93 kg; dynamic load: 882 CN / 60 kg.

Technical information

• Rail length: 2000 mm.
• Diameter: Ø 20 mm.
• Materials: carbon steel and aluminum.
• Model: SBR20-C 2000L.

Completion

2 pcs. 2000 mm long linear guide rails and 4 pcs. SBR20 type bearing slide blocks.
