Linear SBR20 guide rails 1800 mm set for CNC machines

Linear guide rails SBR20 1800 mm with sliding blocks are designed for automated machine tools and CNC milling machines. The set ensures smooth sliding, high accuracy and corrosion resistance, making it suitable for DIY projects and various mechanical solutions.

Description:

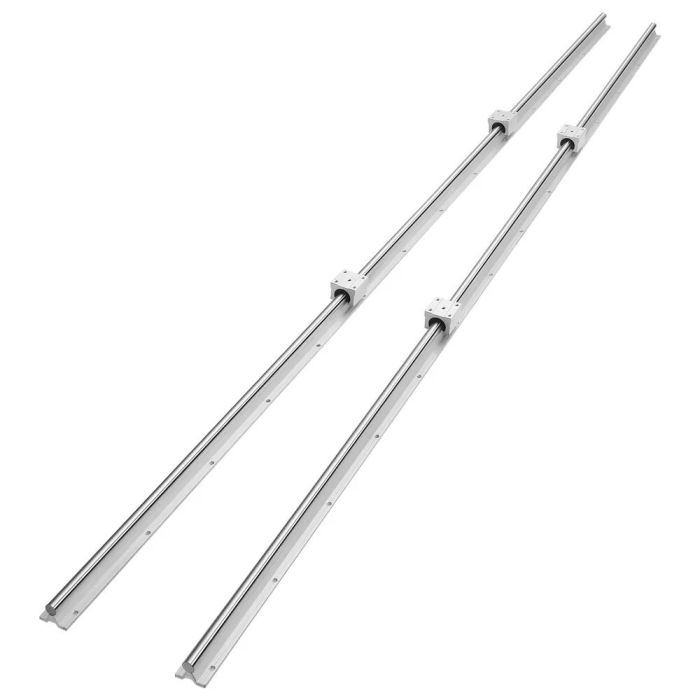

• Linear guide rail set with 2 pcs. SBR20 rails and 4 pcs. SBR20UU sliding blocks.
• Provides smooth and precise sliding without interference, easy to control force.
• Designed for CNC milling machines, automated machines and various mechanical projects.
• Length: 1800 mm (70.9 in.).

Features:

• High corrosion resistance.
• Smooth sliding and stable action.
• Easy installation and use.
• Widely applicable to mechanical projects.

Technical data:

• Shaft diameter: Φ20 mm.
• Material: high carbon steel and aluminum.
• Model number: SBR20-C 1800L.
• Product dimensions (L x W x H): 1800 x 90 x 36.3 mm (70.9 x 3.5 x 1.4 in.).
• Package dimensions (L x W x H): 1930 x 145 x 80 mm (76 x 5.7 x 3.1 in.).
• Dynamic load (per unit): 882 N.
• Static load (per unit): 1370 N.
• Fixing hole distances A and B: 35 mm each.
• Sliding unit dimensions (L x W x H): 50 x 48 x 39 mm.
• Sliding unit model: SBR20UU.
• Net weight: 13.4 kg.

Delivery set:

• 2 pcs. SBR20 linear guide rails (1800 mm).
• 4 pcs. SBR20UU sliding blocks.
