Hydraulic scissor lift kit 10 t, 12 V pump

Hydraulic dump truck scissor lift for large 12-16 ft / 3.7-4.9 m dump trailers. The kit includes a 12 V hydraulic pump with double-acting function, ensuring safe and efficient lifting of up to 10 t / 22,000 lbs. This industrial device is durable and versatile, suitable for lifting various types of trucks.

Description:

• Hydraulic scissor lift kit for dump trailers
• 12 V hydraulic pump with double-acting function
• Suitable for dump trailers from 12 to 16 feet (3.7 to 4.9 m)
• The kit ensures a safe lifting process with a recommended tipping angle of up to 45°

Features:

• Sturdy structural base made of steel (Q355B)
• Easy maintenance and universal application
• Maximum body tilt angle – 127°
• Double-acting pump, avoiding danger of lifting an unloaded load
• Working hydraulic pressure: 16-20 MPa

Technical data:

• Lifting capacity: 10 t / 22,000 lbs
• Power: 1.6 kW
• Flow: 1.45 GPM
• Maximum discharge pressure: 3200 PSI / 22 MPa
• Oil tank capacity: 10 QT / 9.5 L (PP plastic material)
• Lifting plate thickness: 0.3 in / 8 mm
• Product dimensions: 50.2 in x 24.0 in x 11.8 in / 1275 x 610 x 300 mm
• Net weight: 383.6 lbs / 174 kg
• External power supply voltage: 12 V DC
• User-supplied power cable capacity: ≥200 A (single core 95 mm² cable)
• Product model number: ER-006 (10T)

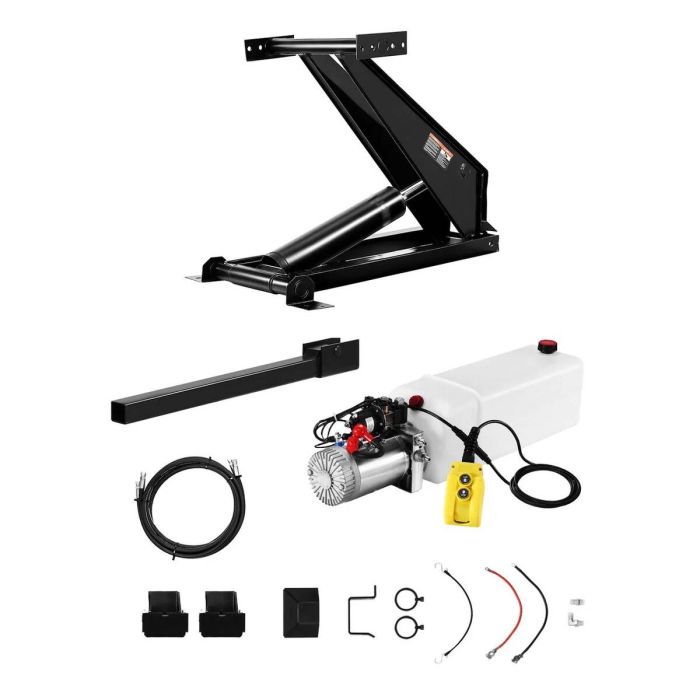

Package included:

• Hydraulic dumper scissor lift kit with 12 V hydraulic pump
