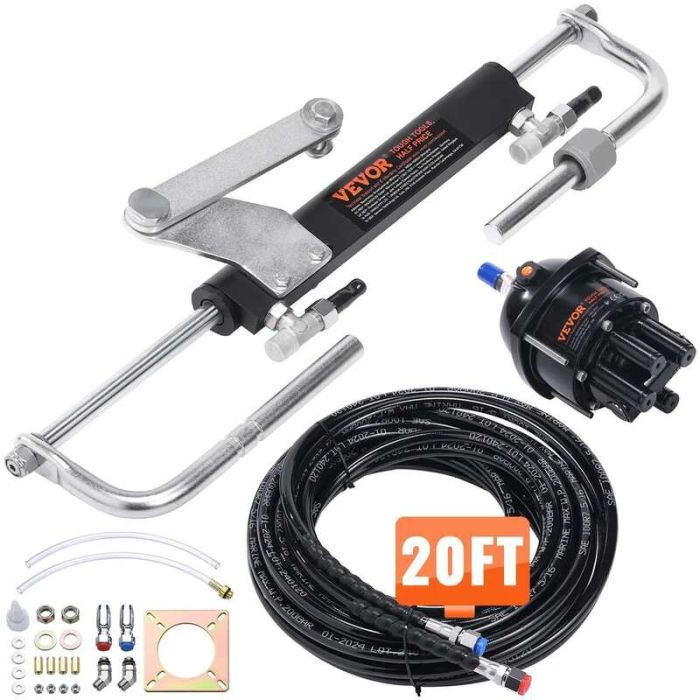

Hydraulic steering kit for sea boat with pump and 6 m hose

Hydraulic outboard steering kit is designed for marine vessel steering systems. This hydraulic system with a two-way lock cylinder on the steering pump and a 6-meter long hydraulic hose is perfect for single-station and single-engine boats up to 90 HP. The system is characterized by ease of use and appropriate technical specifications.

Description:

• Hydraulic outboard engine steering system with two-way lock cylinder
• Designed for single-station and single-engine boats
• Includes 6 m long hydraulic steering hose
• Suitable for engines up to 90 HP

Features:

• Easy maintenance
• Fixed length hoses
• A wide selection of accessories
• Convenient reminder
• Sturdy and durable structural design

Technical data:

• Stroke length: 7.9 in./200 mm
• Working volume: 73 cm³
• Suitable engine power: ≤90 HP
• Tube inner diameter: Φ1 inch/25 mm
• Rod inner diameter: Φ0.6 inch/14 mm
• Output force: 232 KGF
• Maximum pressure: 2.5 MPa/363 psi
• Product model number: HSX-90HP

Package included:

• Hydraulic steering mechanism
• Two-way lock cylinder
• 6 m long hydraulic steering hose
