Hydraulic outboard steering gear kit, 90 HP, for marine vessels

The hydraulic outboard steering kit is designed for vessels up to 90 HP, providing a reliable marine hydraulic steering system. This system features a two-way steering pump lock cylinder and a 731.5 cm long hydraulic steering hose, ideal for single-station single-engine vessels.

Description:

• 90 HP Hydraulic Outboard Engine Steering Kit
• Marine Hydraulic Steering System with Two-Way Steering Pump Lock Cylinder
• 731.5 cm Long Hydraulic Steering Hose
• Designed for single-station single-engine vessels
• Easy Maintenance and Convenient Reminder

Features:

• Fixed Length Hydraulic Hose
• A Wide Range of Accessories
• Sturdy and Durable Construction

Technical data:

• Stroke length: 7.9 in./200 mm
• Displacement: 73 cm³
• Suitable engine power: ≤90 HP
• Tube inner diameter: Φ1 in./25 mm
• Product model number: HSX-90HP
• Output force: 232 KGF
• Maximum pressure: 2.5 MPa/363 psi
• Rod inner diameter: Φ0.6 in./14 mm

Package included:

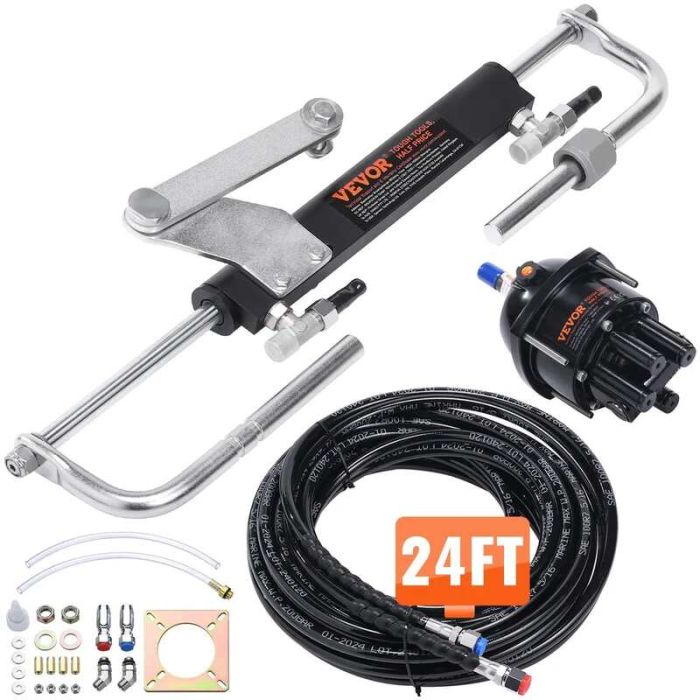

• Hydraulic steering pump with lock cylinder
• 731.5 cm long hydraulic steering hose
• Other necessary accessories for the set
