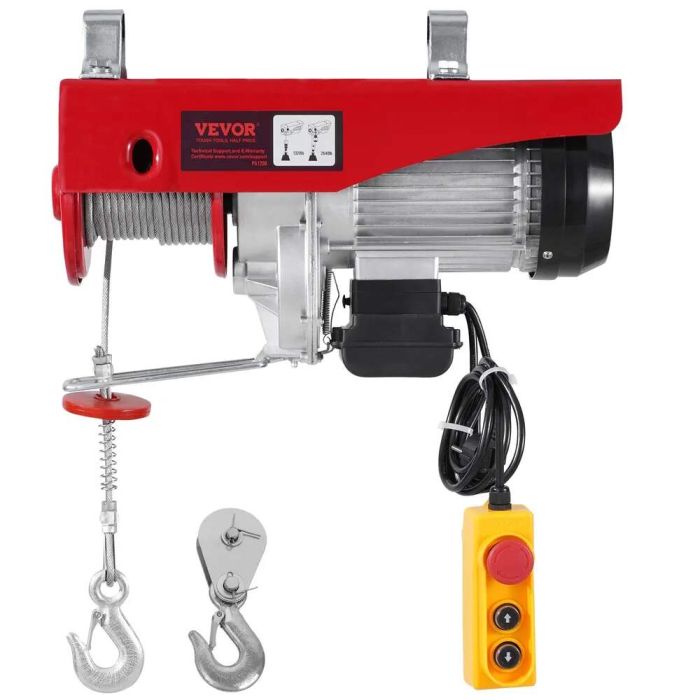

Electric lifting winch 1197.5 kg with wired remote control 230 V

The electric lifting crane winch with a lifting capacity of 1197.5 kg and a wired remote control is an effective solution for various lifting tasks. This device supports single and double rope lifting modes, ensuring stable operation and convenient control at 230V voltage.

Description:

• Lifting capacity up to 1197.5 kg
• 426.7 cm long wired remote control
• Single and double rope lifting capabilities
• Braided steel rope ensures reliability
• Easy installation and control

Features:

• Control mode: wired remote control
• Single rope lifting height: 40 ft / 12 m
• Double rope lifting height: 20 ft / 6 m
• Single rope lifting speed: 27.6 ft/min. (8.4 m/min.)
• Double rope lifting speed: 13.8 ft/min. (4.2 m/min.)
• Single/Double Rope Hook

Specifications:

• Model Number: PA1200
• Voltage: 230 V
• Product Weight: 58.20 lbs / 26.4 kg
• Product Dimensions: 490 x 170 x 260 mm (19.29 x 6.70 x 10.24 in.)
• Single Rope Capacity: 1320 lbs / 600 kg
• Double Rope Capacity: 2640 lbs / 1200 kg

Shipping set:

• Electric lifting crane winch PA1200
• 426.7 cm long wired remote control
• Single and double rope lifting equipment
