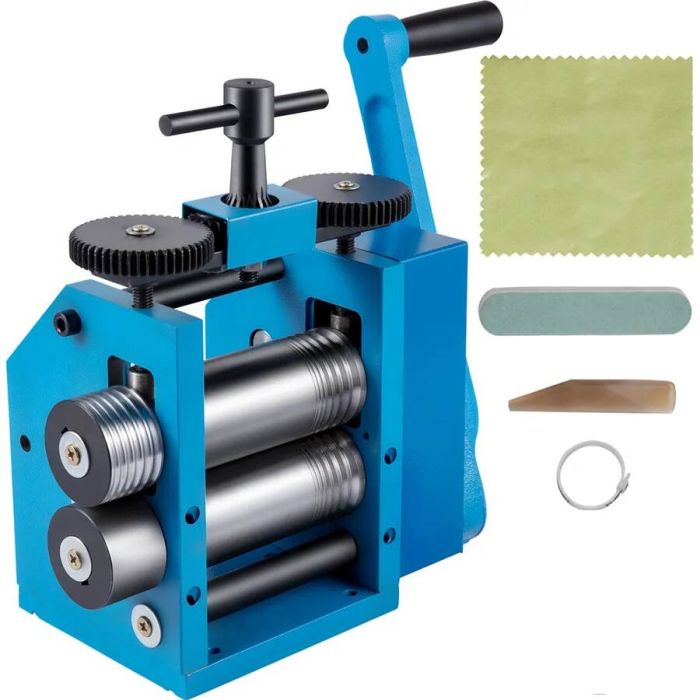

Jewelry Rolling Mill, 3 inch (76 mm), 1:2.5 gear ratio, handheld

The rolling mill for jewelry sheet processing features adjustable roller spacing and the ability to process metal sheets of various thicknesses. This 3-inch (76 mm) rolling mill is suitable for wire and various shapes, ensuring precise and high-quality work.

Description:

• Manual combination rolling machine for metal jewelry sheet and wire
• Iron frame with chrome-plated steel roller and ABS handle
• Adjustable roller spacing allows you to work with materials of various thicknesses
• Multifunctional application - square and semi-circular pattern

Features:

• Gear ratio: 1:2.5
• Min. press thickness: 0.001 inch (0.03 mm), max. press thickness: 0.26 in (6.5 mm)
• Pressing semi-circle: from 0.08 in (2 mm) to 0.4 in (10 mm)
• Pressing squares: from 0.04 in (1 mm) to 0.24 in (6 mm)
• Roller dimensions: 2.1 in x 4.5 in (53 x 113 mm)
• ABS handle with mounting hole for convenient use
• A wide range of accessories adapts to different jobs

Technical data:

• Model: Single slot rolling machine
• Pressing flat sheet: 3 in (76 mm)
• Material: cast iron and chrome plated steel
• Product dimensions: 13.4 in x 13 in x 13.4 in (34 x 33 x 34 cm)
• Weight: 39.7 lb (18 kg)

Package includes:

• Rolling machine with adjustable roller distance
• Roller and pressing square set
• ABS handle with mounting hole
• Instructions and mounting parts
