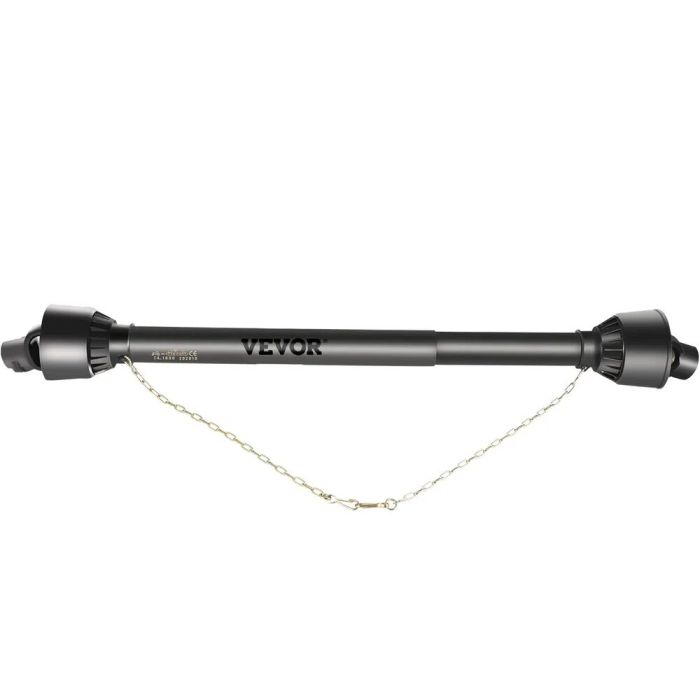

Driveshaft 1-3/8" x 6 splines, T4, 43"-61"

The cardan shaft is designed for use in various agricultural and industrial applications, ensuring efficient power transmission. This 1-3/8" shaft has a 6-spline tractor end and a round implement end, designed for operation at 540 and 1000 rpm. The product is characterized by a wide range of applications and a reliable design solution.

Description:

• High-power PTO shaft with 1-3/8" connecting ends
• Extendable length from 43" (1100 mm) to 61" (1550 mm)
• Tractor end: 1-3/8" x 6 splines
• Implement end: 1-3/8" round end
• Color: black

Features:

• Compact transmission construction
• Simple and quick installation
• Widely applicable to various tractors and implements
• Power at 1000 rpm: 53 HP (39 kW), 360 Nm torque
• Power at 540 rpm: 35 HP (26 kW), 460 Nm torque

Technical data:

• Model: T4-BⅢP*1100 mm*4.05.05B*4.05.A35
• Compressed shaft length: 43" / 1100 mm
• Extended shaft length: 61" / 1550 mm
• Material: 20CrMnTi carbon steel, Q345 steel, plastic
• Part type: cardan shaft
• Certificate: CE certificate

Delivery set:

• Cardan shaft with specified ends and mechanisms for installation
