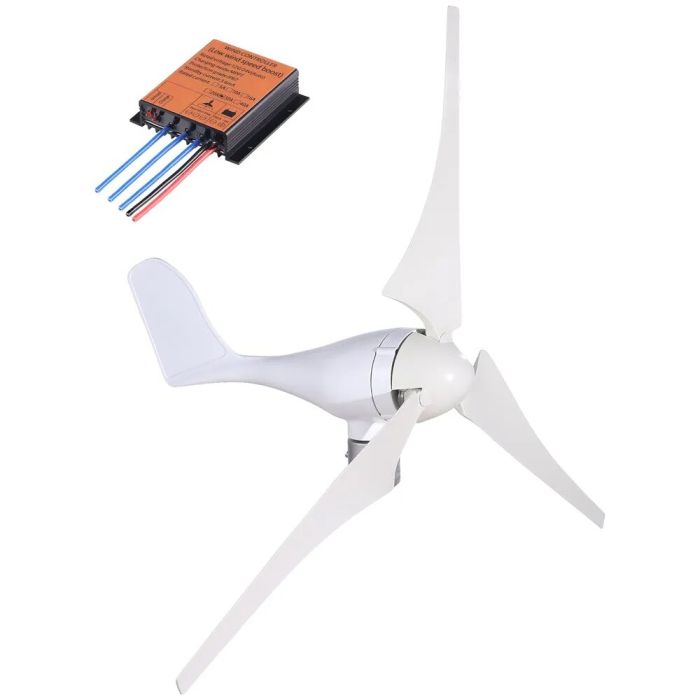

Wind turbine 400W 12V with 3-blade generator and charge controller

Wind turbine 400 W 12 V is an effective solution for renewable energy production. This wind turbine generator set is suitable for energy supplementation and features a reliable design and wide application possibilities. The included 3-blade charge controller ensures efficient power management.

Description:

• Nominal turbine power: 400 W
• Nominal battery voltage: DC 12 V
• 3-blade wind turbine rotor made of PBT material
• Controller with anti-break protection (IP67)
• Starting wind speed: 2.5 m/s (8'/s)
• Nominal wind speed: 12 m/s (35'/s)

Features:

• Maximum discharge current: 20 A
• Brake voltage: 14.5 V
• Turbine recovery voltage: 13.2 V
• Nominal rotation speed: 800 rpm. (RPM)
• Ambient temperature resistance: -35 to +75 ℃
• Stable operation in various weather conditions

Technical data:

• Rotor diameter: 1.2 m (4')
• Number of blades: 3
• Tower height: 4.5 m–10 m (15–33’)
• Tower diameter: >80 mm (3.2 in)
• Static power: 15 mA
• Battery capacity: 200AH–400AH
• Certificates: CE, RoHS, ISO9001

Package included:

• Wind turbine generator 400 W 12 V
• 3-blade rotor
• Charge controller with IP67 protection
• Installation instructions
