Hydraulic quick coupling 1/2 inch NPT, 12 pairs (ISO 16028)

Mini swivel hydraulic quick coupling with 1/2 inch body and NPT threads is designed for various hydraulic systems. These couplings ensure reliable tightness and operation at high pressure, therefore they are suitable for industrial use. The product complies with the ISO 16028 standard and is designed for operation at different temperatures.

Description:

• Mini swivel hydraulic quick coupling with 1/2 inch body and 1/2 inch NPT threads
• Designed for hydraulic systems with a nominal flow rate of up to 45.5 l/min
• Manufactured according to the ISO 16028 standard
• 12 pcs. in the set. connections consisting of 6 pairs

Features:

• Quick and reliable connection with coupling locking system
• Withstands nominal steel pressure up to 27.6 MPa
• Temperature range from -20 ℃ to +100 ℃ (Nbr) and up to +180 ℃ (Fkm)
• Dust covers to protect connections from dirt and dust
• Designed for long service life
• Wide application in various hydraulic systems

Technical data:

• Size: 1/2 inch body, 1/2 inch NPT
• Nominal flow: 45.5 l/min
• Nominal steel pressure: 27.6 MPa
• Nominal stainless steel pressure: 10.4 MPa
• Temperature range (Nbr): -20 ℃ ~ +100 ℃
• Temperature range (Fkm): -20 ℃ ~ +180 ℃
• Standard: ISO 16028

Delivery set:

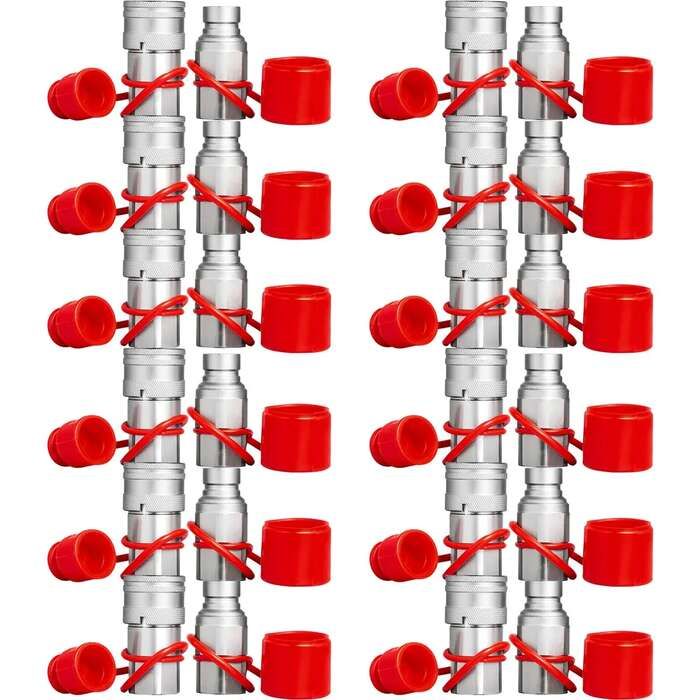

• 12 pcs. hydraulic connectors (6 pairs)
