Fiber optic splicing machine with 4 motors, 5 inch screen, 7800 mah battery

The ALK-T3 fiber optic splicing device is designed for professional splicing of SM, MM, DS, NZDS fibers. The device has 4 motors and a 5-inch touch screen, ensuring precise splicing alignment and a fast splicing process. Battery capacity allows operation independent of power supply.

Description:

• Fiber optic splicing machine with 4 motors and coating alignment
• Splicing time: 6 s (fast mode), 9 s (standard mode)
• Heating time: 13 s
• 5-inch color touch screen is used for precise control
• 3-in-1 fiber optic holder for various fibers

Features:

• Dual white LED lights for work area illumination
• Reinforced housing adapted to extreme conditions
• Compact and portable design for convenient use
• All-in-one kit with all necessary accessories
• Number of motors: 4

Technical data:

• Product dimensions: 5.8 x 5.2 x 6 inches. (146 x 131 x 152 mm)
• Weight with accessories: 11.24 lbs (5.1 kg)
• Battery capacity: 7800 mAh
• Screen type: 5-inch color touch screen
• Simultaneous display: 200x X and Y
• Separate display: 330x X or Y with 1100x magnification
• Alignment method: overlay alignment
• Model number: ALK-T3

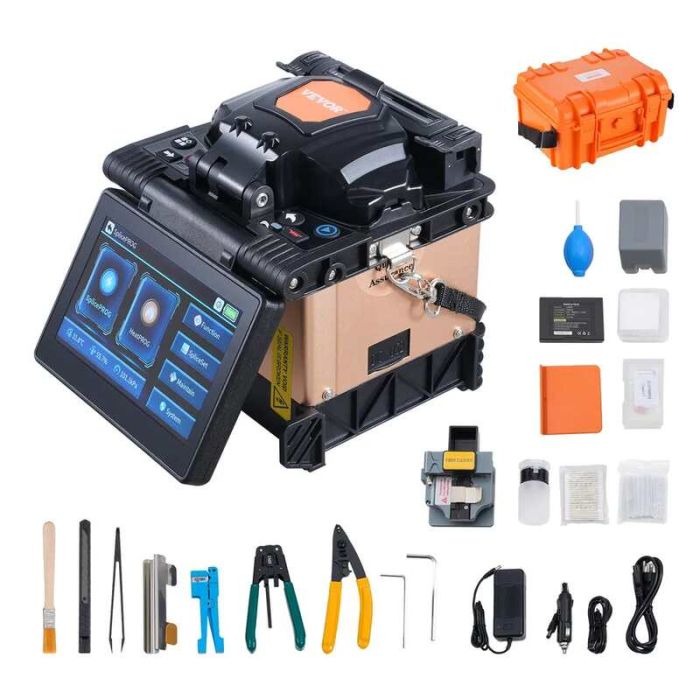

Package contents:

• ALK-T3 fiber optic splicing device with 4 motors
• 3-in-1 fiber optic holder
• Battery 7800 mAh
• Instructions and accessories for use
