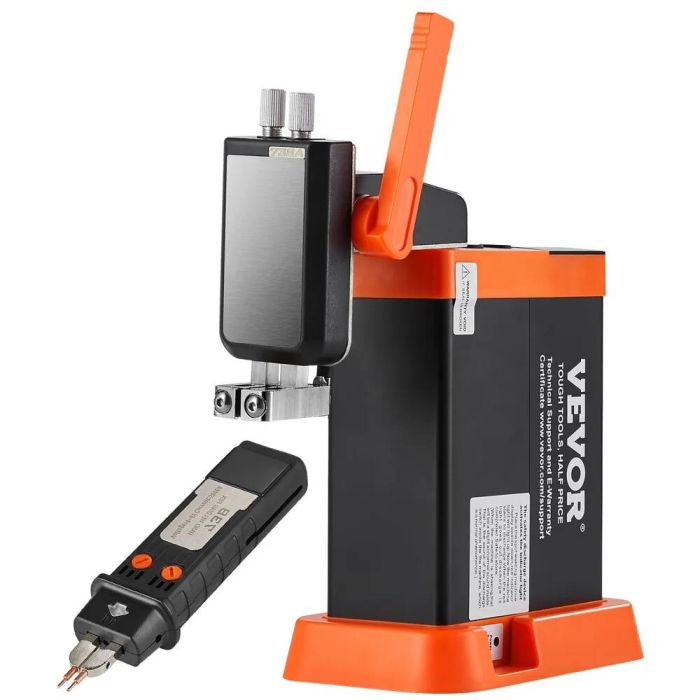

Cordless spot welder, 14.5 kW, 2 modes, 73B pen

Battery-powered spot welder designed for efficient welding of pure nickel with a 14.5 kW pulsed capacitor power system. The equipment features two welding modes and the ability to work with materials with a thickness of 0.1–0.3 mm, ensuring wide application possibilities for metal welding.

Description:

• Impulse spot welding machine with battery and capacitor energy storage
• Equipped with 73B welding pen and 801D model equipment
• Designed for welding pure nickel with a thickness of 0.1 to 0.3 mm
• Two welding modes allow you to choose the optimal work according to the material thickness

Features:

• Powerful 14.5 kW pulse output
• Clear LED display for user information
• Compact and portable design for convenient use
• Improved welding for 0.1-0.3 mm thick pure nickel
• High-power spot welding equipment with 2 working modes

Technical data:

• Welding thickness: up to 0.3 mm
• Maximum welding energy: 290 J
• Model number: 801D
• Welding power adjustment range: 1-99 t
• Pulse output power: 14.5 kW
• Output current range: 500-2500 A
• Product dimensions: 67 x 176 x 126 mm (2.6 x 6.9 x 5.0 in.)
• Net weight: 3.08 kg (6.8 lbs)

Delivery package:

• Spot welder 801D
• 73B welding pen
• Battery and charging equipment
