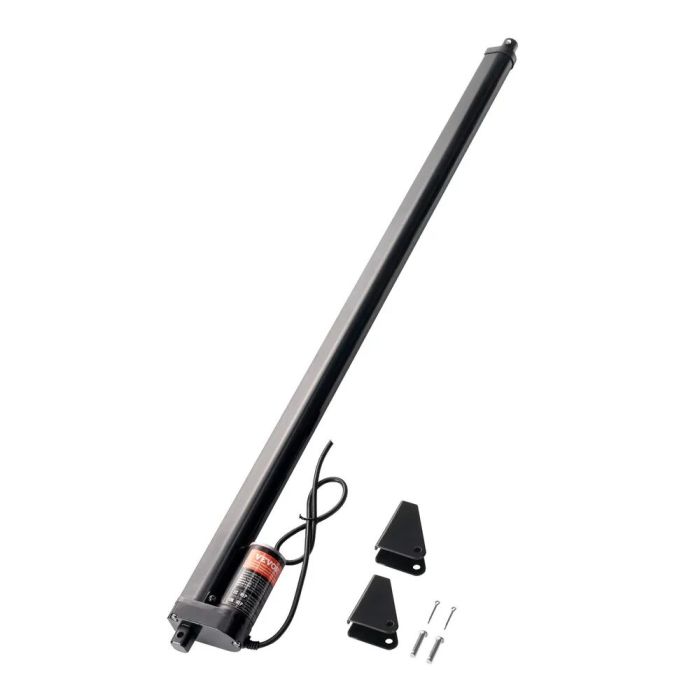

Linear actuator 12V, 50.8 cm, IP54 protection

The 12 V linear actuator is designed to automate movement in various systems. Thanks to its IP54 protection and high load capacity, it is suitable for both industrial and domestic solutions. The actuator operates quietly and ensures precise movement and durability.

Description:

• Linear actuator with 12 V DC motor.
• Stroke length – 500 mm (20 inches).
• High speed – 14 mm/s (0.55 inches/s).
• Voltage – DC 12 V.
• IP54 protection class against dust and splashes.
• Noise level does not exceed 50 dB.
• Designed for automation in various industrial areas.

Features:

• Maximum load / actuation force – 1000 N (99.8 kg).
• Rated current – ​​less than 5 A.
• Easy installation and wide application possibilities.
• Silent operation ensures low noise.
• Warm tips for extra durability.

Technical data:

• Model number: OK648-1000N.
• Product dimensions: 625 x 75 x 40 mm (24.6 x 2.95 x 1.57 in).
• Net weight: 1.48 kg (3.26 lb) with accessories.
• Main material: Aluminum alloy.
• Travel speed: >14 mm/s (>0.55 in/s).

Delivery package:

• Linear drive 12 V, model OK648-1000N.
• Installation accessories and instructions.
