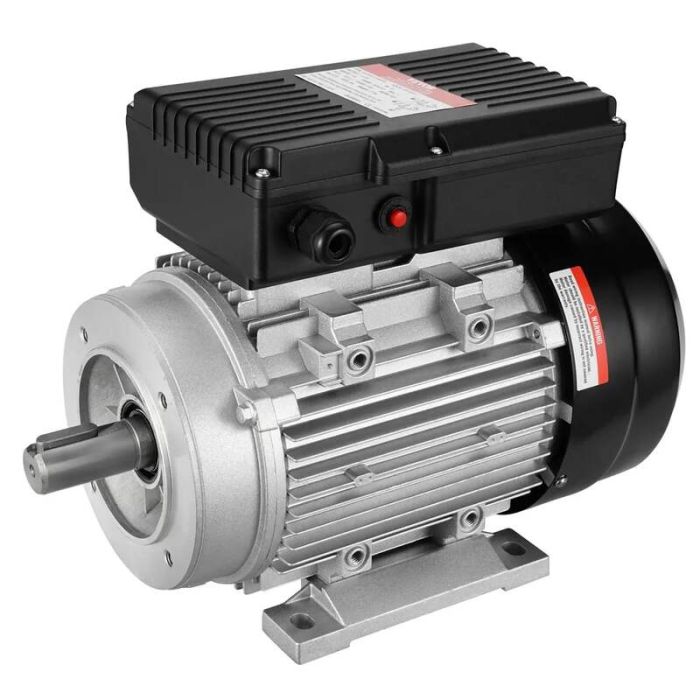

Electric motor 1.1 kW 1400 rpm AC 220-240 V single phase, 24 mm shaft, B34 frame, for air compressor, agriculture

Electric motor with a power of 1.1 kW is intended for agricultural machinery and general equipment. The single-phase AC motor operates at a voltage of 220–240 V and a frequency of 50 Hz, ensuring a stable rotation speed of 1400 rpm. Dual direction of rotation allows for a variety of applications.

Description:

• 1.1 kW electric motor for air compressors and other equipment
• Operates on 220-240 V AC, single phase, 50 Hz
• Rotational speed – 1400 rpm.
• Dual direction of rotation: clockwise and counterclockwise
• 24 mm shaft diameter with key-tightened design

Features:

• 12.75 kg net weight
• 7.5 A current
• Easy installation and maintenance
• Standard B34 frame size (90S)
• For general agricultural and industrial equipment

Technical data:

• Power: 1.1 kW (1.5 HP)
• Voltage: AC 220-240 V
• Frequency: 50 Hz
• Current: 7.5 A
• Speed: 1400 rpm.
• Shaft diameter: 24 mm, keyed
• Frame size: 90S, B34
• Dimensions: 335 x 175 x 240 mm (13.2 x 6.9 x 9.4 in.)
• Weight: 12.75 kg (28.1 lbs)
• Model: ML90S-4-1.1kW-B34

Package includes:

• Electric motor ML90S-4-1.1kW-B34
