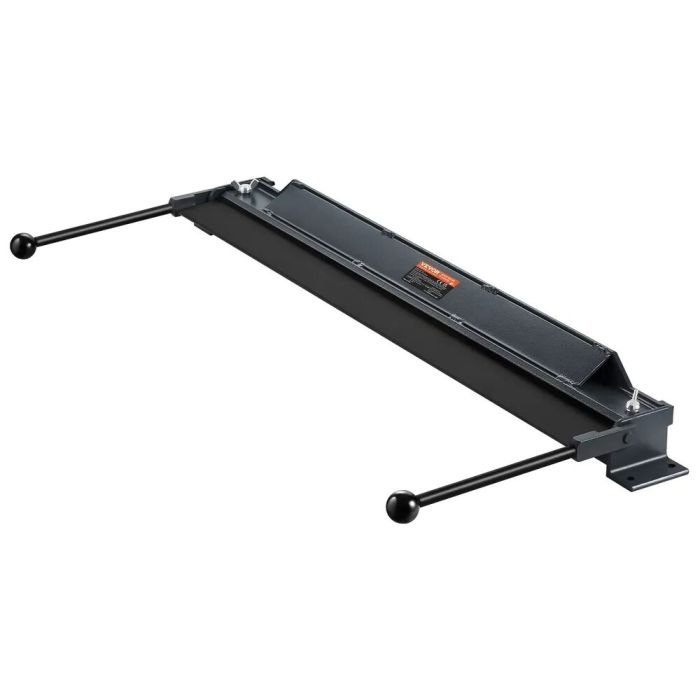

Portable sheet metal bending brake, 1220 mm, 0–130°

The metal bending brake with a bending area of ​​1220 mm is designed for precise and reliable processing of metal sheets. This portable mini bender allows you to bend mild steel and aluminum sheets at angles between 0 and 135 degrees.

Description:

• Bending brake for 20 gauge mild steel and 14 gauge aluminum sheets
• Maximum bending width capacity: 1220 mm ± 15 mm
• Available bending angle from 0° to 130° (accuracy ± 1°)
• Easy and comfortable operation with a powerful handle

Features:

• Corrosion resistance
• Easy installation and transportation
• Reliable bending of metal sheets
• High productivity and precision

Specifications:

• Dimensions (L x W x H): 1390 x 450 x 155 mm (54.7 x 17.7 x 6.1 in.)
• Maximum bending width: 1220 mm ± 15 mm (48 ± 0.6 in.)
• Bending angle: 0°-135° ± 1°
• Material: Q235 steel
• Weight: 28 kg (61.7 lb)
• Model number: W-1.0X1220
• Maximum bending thickness: 20 gauge low carbon steel, 14 gauge aluminum

Delivery set:

• Metal bending brake W-1.0X1220
• Powerful handle
• User manual
