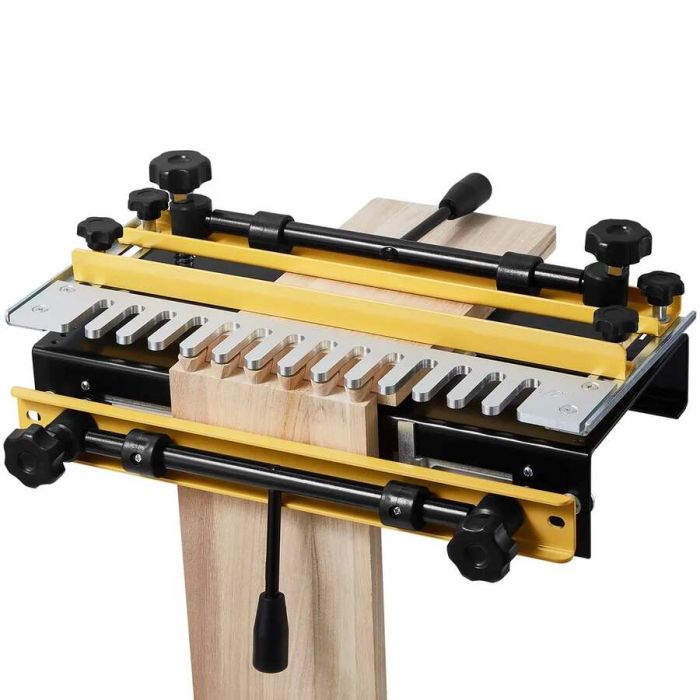

Precision 12" dovetail router with 0.5" template

The dovetail joint milling device ensures precise and reliable machining of semi-blind dovetail joints. The machine is made of durable Q235 steel and 6061T5 aluminum alloy, which is resistant to corrosion and rust, so it is suitable for long-term use.

Description:

• 30.5 cm precision milling device for Dovetail joint with 1.27 cm template
• For semi-blind Dovetail joint processing
• Resistant to corrosion and rust
• High precision adjustment
• 12 inch machining width
• 1/2" Dovetail milling bits
• Full set of accessories

Features:

• Slot and tenon design: semi-blind Dovetail joint
• Top machining range: 5.5-12 inches (140-310 mm)
• Side machining range: 5.9-11 inches (150-280 mm)
• Maximum top clamping thickness: 1.57 inches (40 mm)
• Maximum side clamping thickness: 1.42 inches (36 mm)
• High precision adjustment allows for quality machining

Specifications:

• Model number: 28104-1
• Net weight: 16.42 lbs (7.45 kg)
• Product size: 17.91 x 18.50 x 4.13 inches (455 x 470 x 105 mm)
• Material: Q235 steel and 6061T5 aluminum alloy
• Number of templates: 1

Package included:

• Dovetail joint router bit
• 1.27 cm template
• 1/2" Dovetail router bits
• Full set of accessories
