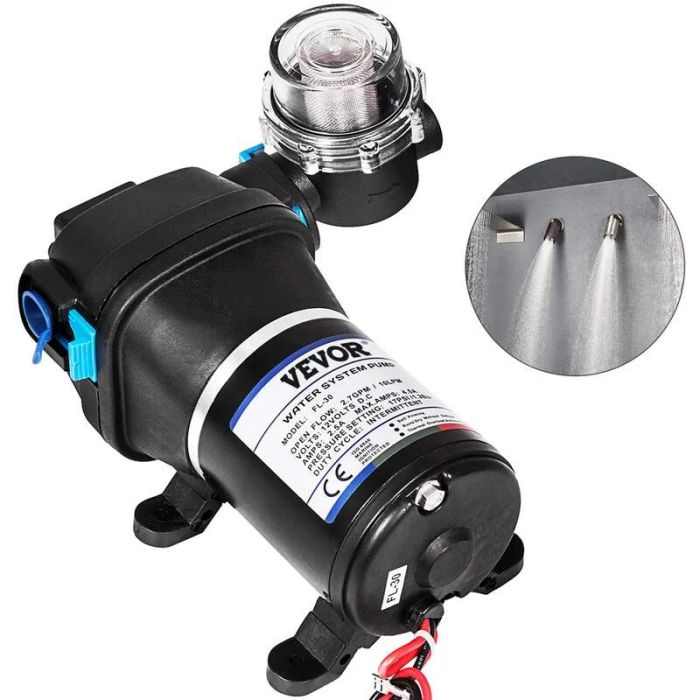

Diaphragm 12 V water pressure pump FL-30, 1.17 bar

The FL-30 diaphragm water pressure pump is designed for efficient water supply and pressure maintenance. This 12 V pump features a maximum pressure of 1.17 bar and a self-priming function that ensures reliable operation even in dry conditions. Its design and accessories make it suitable for a variety of water pumping needs.

Description:

• Diaphragm water pump with 3-chamber diaphragm
• High pressure - up to 1.17 bar (17 PSI)
• Operates at 12 V, 2.2 A
• Self-priming up to 2 m (6 ft)
• Inlet and outlet size - 1/2 inch hose nozzle with thread
• Model: FL-30

Features:

• Thermal protection against overheating
• A metal filter is included to protect the pump
• Dry running capability
• Quick assembly and connection with 3/4 inch (19 mm) connection
• The body is made of cast iron material
• Widely applicable to various water pumping systems

Technical data:

• Maximum pressure: 1.17 bar (17 PSI)
• Flow: 10 l/min (2.63 GPM)
• Voltage: 12 V DC
• Current: 2.2 A
• Inlet size: 1/2 inch hose nipple with thread
• Outlet size: 1/2 inch hose nipple with thread
• Connection size: 3/4 inch (19 mm) quick connect
• Net weight: 2.4 kg (5.3 lbs)
• Self-priming: up to 2 m (6 ft)

Package includes:

• FL-30 Diaphragm Water Pressure Pump
• Metal Filter
