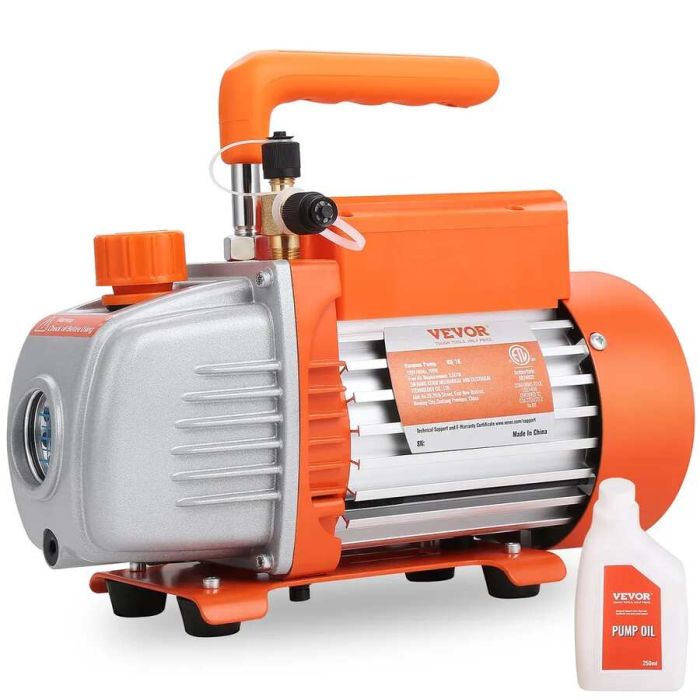

1/5 HP Vacuum Pump, 3.5 CFM, 220-240V, for HVAC Repair

Single-stage vacuum pump for air conditioning (HVAC) repair and refrigeration system maintenance. With a 3.5 CFM output and 220-240V AC power supply, this pump provides efficient vacuum generation and resin degassing. It is notable for its good air throughput and convenient use in repair and maintenance work.

Description:

• 1/5 HP single-stage vacuum pump with 3.5 CFM air flow
• Suitable for HVAC system repair and refrigeration system maintenance
• Equipped with an observation window and exhaust port (oil filler cap)
• Pure copper motor and fan cover
• Easily portable with a wide range of applications

Features:

• Oil capacity: 250 ml
• Working speed: 1440 rpm.
• Maximum vacuum: 5 Pa/min.
• Free air volume: 100 l/min.
• Inlet connections: 1/4" SAE male thread, 3/8" SAE male thread
• Outlet: 0.6 cm SAE male thread / 1.27 cm ACME male inlet

Specifications:

• Voltage / Frequency: 220-240 V / 50 Hz
• Power: 150 W
• Model number: TW-1K
• Dimensions: 290 x 120 x 220 mm (11.4 x 4.7 x 8.66 in.)
• Net weight: 5.39 kg (11.9 (lbs)

Delivery set:

• Single-stage vacuum pump
• Sight glass and fan cover
• Exhaust connection with oil filler cap
