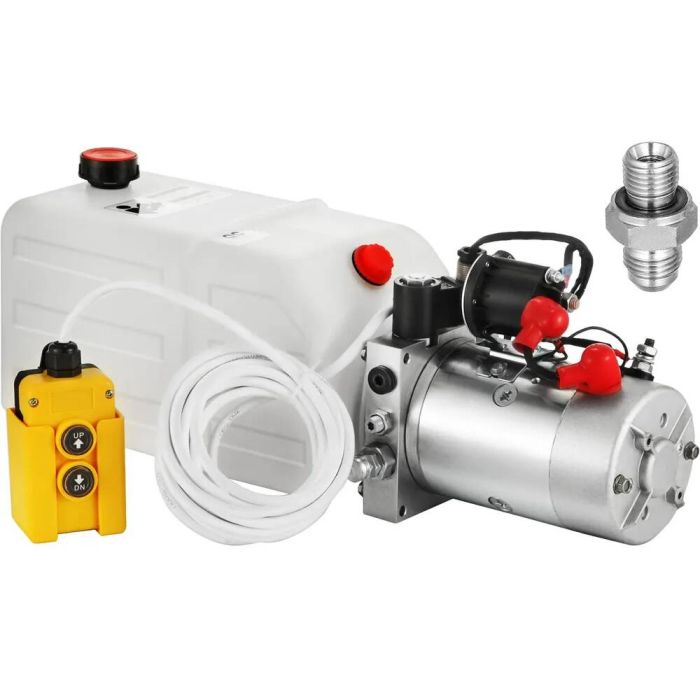

Mophorn single-acting 12 V hydraulic pump, 7 L

The Mophorn 12V single-acting hydraulic pump is designed for dump trucks and other hydraulic equipment needs. This pump has a 7-liter transparent tank that allows you to easily monitor the fluid level. Its convenient design and universal use make it suitable for various hydraulic projects.

Description:

• Single-acting hydraulic pump for dump trucks and other equipment
• Power supply 12 V DC voltage
• Convenient design with quick start and lift
• Durable and easy installation
• Wide application in various hydraulic systems

Features:

• Maximum relief valve pressure at port A: 22 MPa (3200 PSI)
• Relief setting at port B up to 1500 HP
• SAE No. 6-way horizontal mounting
• Hand-held pendant with approx. 4.5 m (15 ft) of pull cord
• Starting solenoid for fast operation
• Single-action start/gravity function

Technical data:

• Displacement: 0.562-4.350 GPM
• Nominal speed: 2850 rpm.
• Motor power: 0.37-5.5 kW
• Motor voltage: DC 12 V
• Hydraulic tank material: plastic
• Fuel tank capacity: 7 liters (7 quarts)
• Transparent 7 liter tank for liquid level monitor

Delivery set:

• Single-acting hydraulic pump "Mophorn" 12 V
• Hand pendant with pull rope
• Starting solenoid
