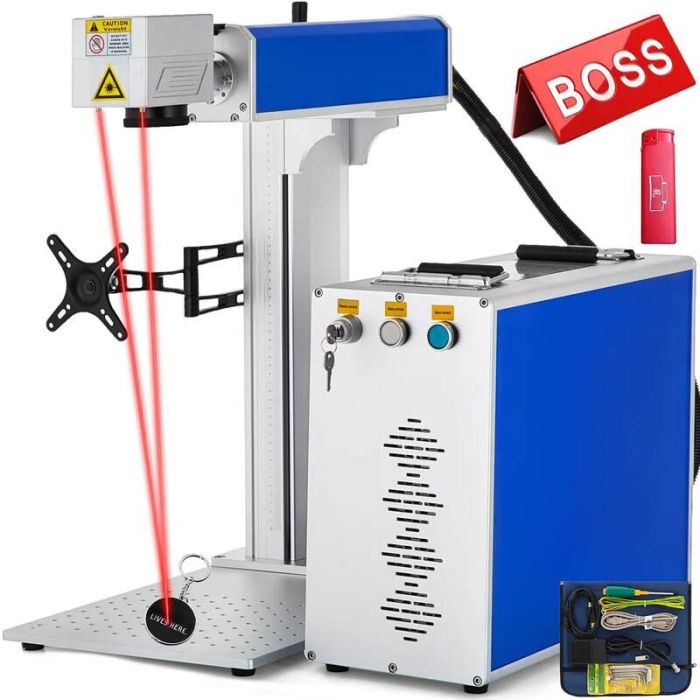

30W fiber laser marker, 150x150mm, stand-alone type

The 30 W fiber laser marking machine is designed for precise and efficient engraving of various materials. The device features high marking speed and the ability to use a wide range of software, making it suitable for professional use. Laser wavelength and focus function ensure clear and detailed results.

Description:

• 30W fiber laser marking machine standalone type
• Marking area: 150 x 150 mm (5.9 x 5.9 inches)
• Laser focus function and galvanometer system to ensure accuracy
• Minimum line width: 0.01 mm
• Compatible with Auto-Cad, CorelDRAW, Photoshop and other programs

Features:

• Laser wavelength: 1064 nm
• Marking speed up to 8000 mm/s
• Repeatability: +/-0.0001 mm
• Beam quality: less than 1.6
• Laser frequency: 20-80 kHz
• Special switch control and sophisticated lifting wheel
• Standard positioning hole

Technical data:

• Power: 30 W
• Voltage: 110 V, 60 Hz
• Marking depth: less than 1 mm
• Service life: 100,000 hours
• Computer system: Windows XP/7/8/10 (32/64-bit mode supported)
• File format support: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT and etc.

Delivery set:

• Fiber laser marking machine (30 W, 150 x 150 mm)
• Galvanometer system
• Switch control unit
• User manual and software interfaces
