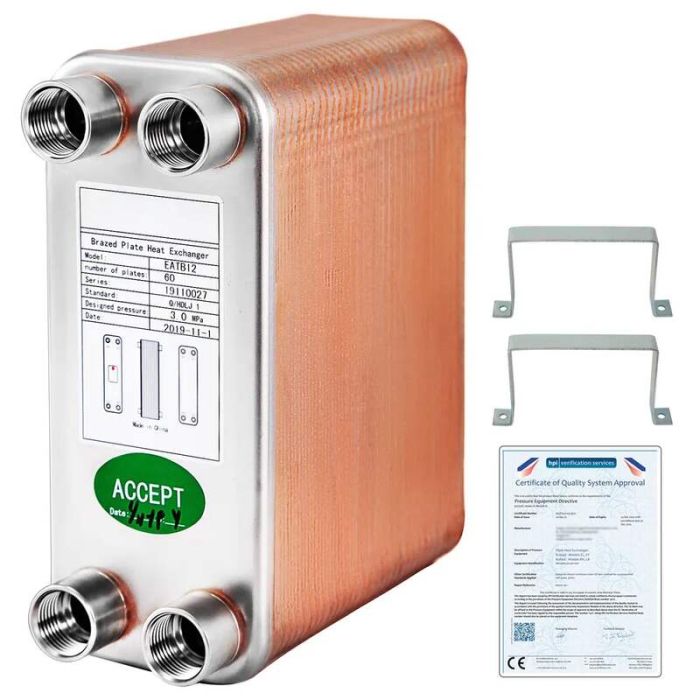

Brazed plate heat exchanger, 60 plates, 1/2" BSP FPT, stainless steel 316L

This brazed plate heat exchanger is designed for hydronic heating and ensures efficient heat exchange. Made of 316L stainless steel, it is corrosion resistant and durable. Compact dimensions and specific 1/2 inch BSP FPT ports allow easy integration into various heating systems.

Description:

• Brazed plate heat exchanger for hydronic heating
• Made of 316L stainless steel and +99.9% copper
• 60 plate construction
• 1/2 inch BSP FPT connections (FB ports)
• Compact and flexible design

Features:

• Excellent thermal performance with low energy consumption
• High corrosion resistance due to 316L stainless steel
• Wide application in various heating systems
• Specially designed for FB type holes

Technical data:

• Number of plates: 60
• Model: B12-60
• Design pressure (max): 3.0 MPa
• Design temperature: from -196 ℃
• Test pressure (min): 4.5 MPa
• Connection size: 1/2 inch BSP FPT
• Material: 316L stainless steel + 99.9% copper
• Dimensions: 19.4 cm x 7.2 cm x 16.1 cm (7.6 in x 2.8 in x 6.3 in)

Shipping set:

• Heat exchanger B12-60 with 60 plates
