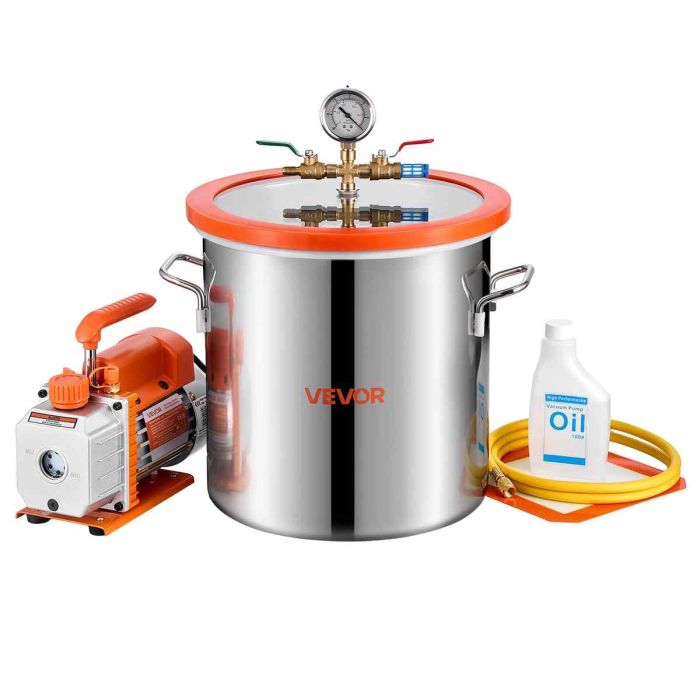

Vacuum chamber with pump VEVOR RS-1, 18.93 l, 37 × 36 × 42 cm

VEVOR RS-1 is a 18.93 l vacuum chamber and vacuum pump set for wood stabilization and silicone resin degassing. The stainless steel chamber has a tempered glass lid through which the process can be observed.

The single-stage pump provides 3.5 CFM or 99 l/min of free air displacement and achieves a maximum vacuum of 5 Pa. The chamber and pump can be used in laboratory processes, food packaging, resin casting and wood stabilization, as specified in the product specification. The 1.5 m long tube included in the kit is for connecting the system. The pump has a four-pole high-torque motor, cast iron and cast aluminum housing and a cooling fan.

Main product features

• 18.93 L vacuum chamber.
• Stainless steel chamber and tempered glass cover.
• Vacuum pump with 3.5 CFM / 99 l/min capacity.
• Maximum vacuum: 5 Pa / 37.5 microns.
• 1/4 inch SAE air inlet.
• Rubber non-slip handle.
• Silicone oil vacuum gauge and transparent oil level window.
• T-shaped heat dissipation design.

Technical information

• Model: RS-1.
• Motor power: 1/4 HP, 180 W.
• Dimensions: 37 × 36 × 42 cm.
• Net weight: 12.15 kg.
• Compatible refrigerants: R134a, R22 and R410a.

Package

The kit includes a 18.93 l vacuum chamber, a single-stage vacuum pump, a tempered glass lid and a 1.5 m hose.
