CNC engraving machine 300x180x45 mm 3-axis laser 15W GRBL

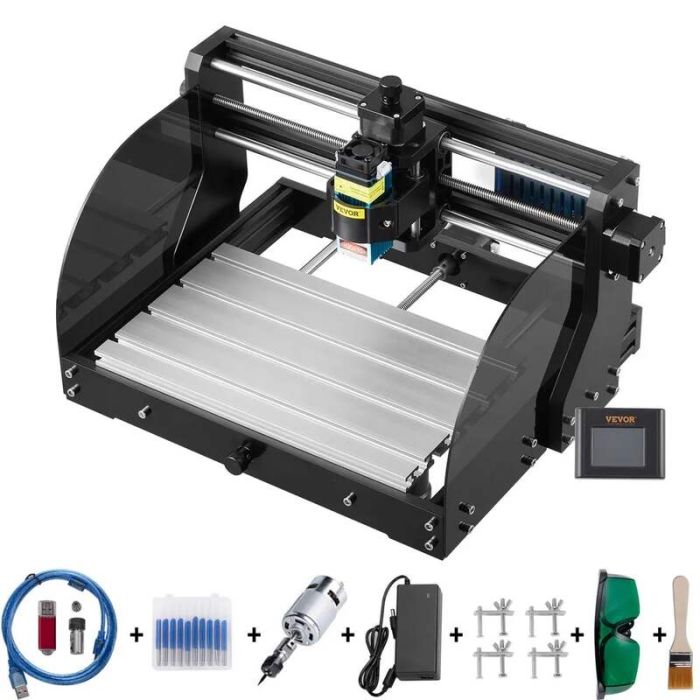

The CNC 3018 Pro laser engraving machine is designed for precise engraving of plastic, acrylic, PVC and wood. The device has a 15000 mW laser module and 3-axis control, which allows you to perform complex engraving work in a large 300 × 180 × 45 mm work area.

Description:

• Engraving machine with 15 W (15000 mW) laser module and spindle motor.
• Designed for plastic, acrylic, PVC and wood carving.
• GRBL control system allows for precise control of 3-axis engraving.
• The stand-alone controller ensures convenient use of the device.

Features:

• Large effective work area: 300 × 180 × 45 mm (11.8" x 7.1" x 1.8").
• Spindle speed up to 10000 rpm.
• Easy to install and operate.
• Functional control board with user-friendly interface.
• Materials: aluminum profile and bakelite.
• Drive elements - stainless steel T8 screws.

Technical data:

• Model: VG-S3018 Pro MAX.
• Power supply: DC 24V 5A.
• Cutting diameter: 3.175 mm (0.125").
• Stepper motor: size 42, 12 V, torque 0.25 N/m.
• Positioning accuracy: 0.08-0.1 mm (0.003-0.004 inch).
• Products dimensions: 400 × 300 × 240 mm (15.7" x 11.8" x 9.4").

Delivery set:

• Laser engraving machine CNC 3018 Pro with control board.
• Standalone controller and necessary hardware for installation.
• Instructions for working with GRBL software.
