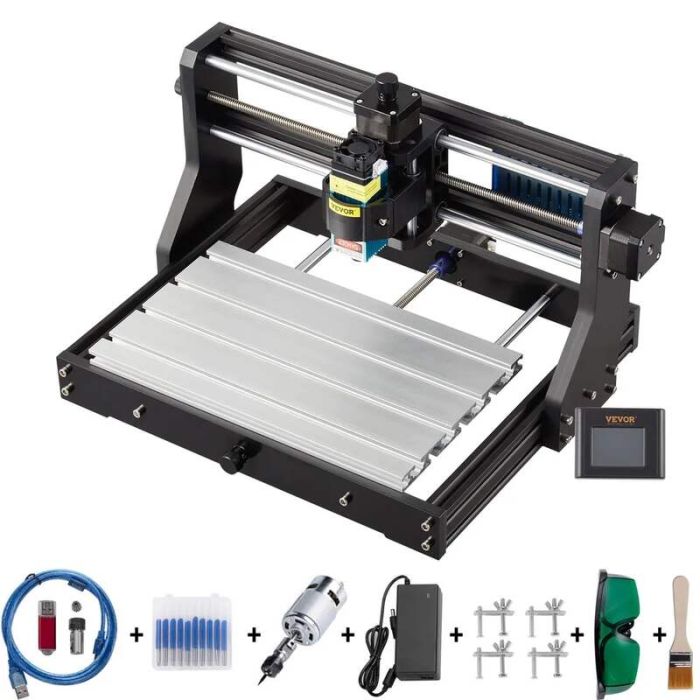

CNC 3018 pro 5500MW 3-axis mini laser engraving and milling machine, 300×180×45 mm

CNC 3018 Pro 5500MW is a mini laser engraving machine for carving and milling plastic, acrylic, PVC and wood. This 3-axis CNC machine features a large working area and GRBL control software. The laser module allows you to work accurately and efficiently on various materials.

Description:

• 3-axis CNC laser engraving machine with 5500 mW laser
• Designed for carving and milling plastic, acrylic, PVC and wood
• GRBL control software with offline controller
• Large working area allows you to process larger parts
• Easy installation and functional control panel

Features:

• Laser power: 5500 mW
• Spindle speed: 10000 rpm.
• Positioning accuracy: 0.003 inch / 0.07 mm
• Control system: GRBL control
• Widely applicable to various materials

Technical data:

• Effective working area (X x Y x Z): 300 × 180 × 45 mm (11.8 × 7.1 × 1.8 inches)
• Cutter diameter: 3.175 mm (0.125 inches)
• Input power: DC 24V 5A
• Product dimensions: 451 × 366 × 276 mm (17.7 × 14.4 × 10.9 inches)
• Materials: aluminum profile and bakelite
• Drive elements: stainless steel T8 screws
• Model: VG-S3018 Pro
• Stepper motor: 42 size, 12 V; torque: 0.25 N/m

Package included:

• CNC 3018 Pro 5500MW laser engraving machine
• Control board with offline controller
• Instructions and installation details
